8 Tips For Optimizing Your Use Of SECS/GEM SDK

Introduction

A SECS/GEM SDK can significantly reduce the effort required to implement equipment-host communication in semiconductor manufacturing, but the SDK itself is only part of the equation. How a development team configures, tests, and maintains that implementation has a direct impact on communication reliability, troubleshooting speed, and long-term maintainability.

This article walks through eight practical tips for getting more consistent results from a SECS/GEM SDK, whether you're building a new equipment interface or refining an existing one.

What Is a SECS/GEM SDK?

Before looking at optimization tips, it helps to briefly revisit what a SECS/GEM SDK actually provides.

SECS-II defines the structure and content of messages exchanged between equipment and host systems, establishing a consistent format for status, events, and data.

HSMS handles the communication mechanism for SECS messaging over TCP/IP, managing how messages are physically transmitted between equipment and host.

GEM defines standardized equipment behavior, describing how equipment should respond to host requests, report events, and manage its communication state.

A SECS/GEM SDK brings these together into a set of libraries, APIs, and tools that help developers implement equipment-host communication without writing low-level message parsing or connection handling from scratch. Instead of working directly with raw SECS-II byte structures or HSMS state machines, developers can work at a higher level using SDK components — though the specific capabilities available depend on the SDK implementation being used.

8 Tips for Optimizing Your Use of SECS/GEM SDK

1. Understand SECS/GEM Requirements Before Development

Before writing any integration code, it's worth mapping out exactly what the equipment and host need from each other. This includes identifying which messages, collection events, alarms, status variables, equipment constants, and remote commands are actually required for the target application.

Skipping this step often leads to rework later, since assumptions made early in development can turn out to be incomplete once the host system's actual requirements become clear. Reviewing the relevant SECS/GEM specifications and the host system's interface requirements together, before development begins, tends to save time overall.

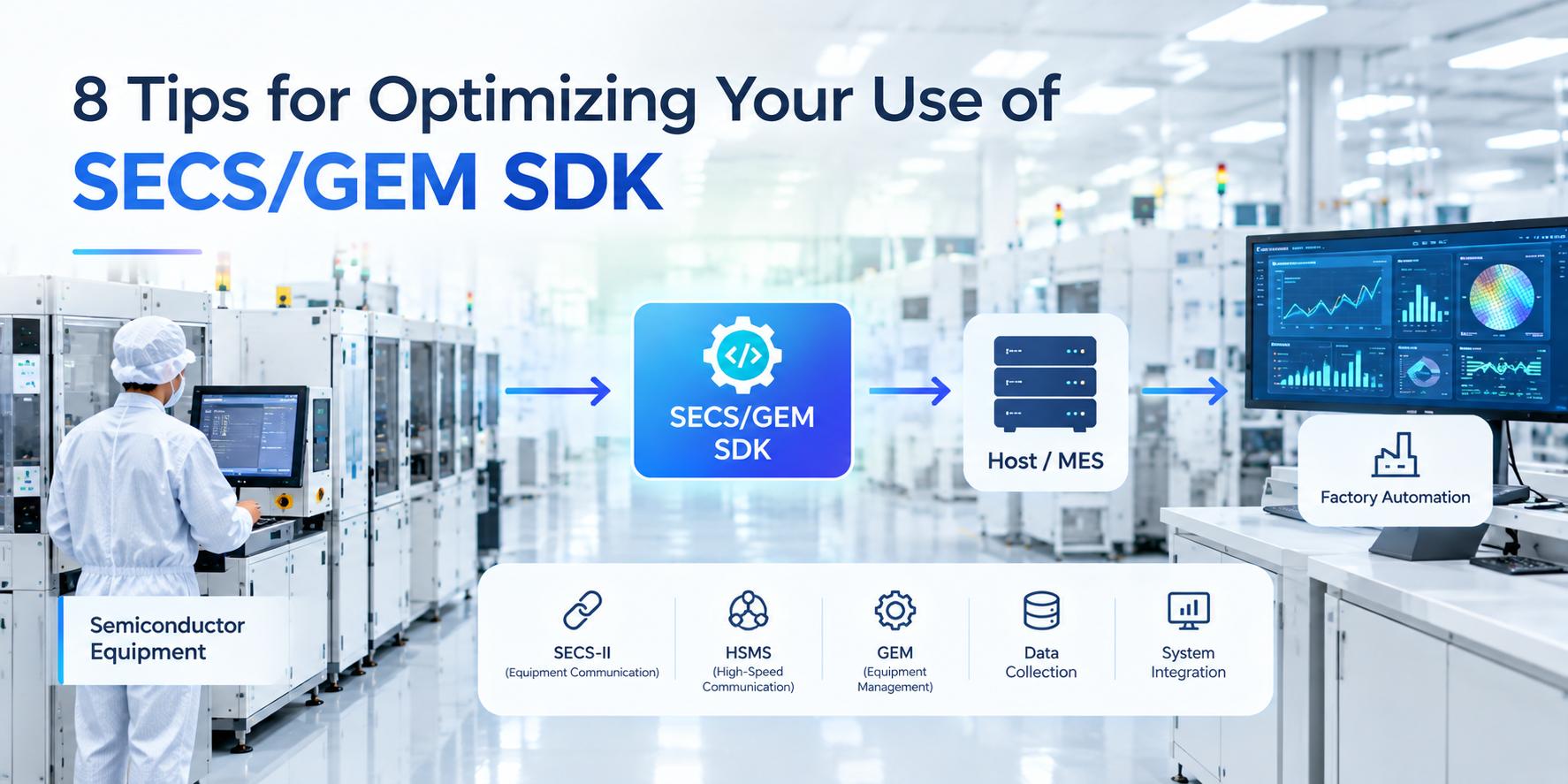

2. Use a Clear Communication Architecture

A well-structured architecture makes an SDK-based implementation easier to build, test, and maintain. A typical structure separates responsibilities across layers:

Equipment Controller
↓
SECS/GEM SDK Layer
↓
HSMS / SECS-II Communication
↓
Host / MES System

Keeping equipment-specific logic separate from the SDK's communication handling makes it easier to update one layer without unintentionally affecting the other. This separation also simplifies testing, since communication behavior can often be validated independently of equipment-specific application logic.

3. Configure Events, Alarms, and Variables Carefully

Collection Events, Alarms, Status Variables, Equipment Constants, and Data Values form the core of what the host actually sees about equipment behavior. Careless or inconsistent configuration in this area can lead to missing data, confusing alarm states, or events that don't accurately reflect what's happening on the equipment.

It helps to:

• Define collection events that map clearly to meaningful equipment states or transitions
• Ensure alarm conditions are configured to reflect actual operational significance, not just technical convenience
• Keep status variable definitions consistent with what the host system expects to receive
• Document equipment constants clearly, since these often affect how the host interprets equipment behavior

Careful configuration in this area tends to pay off later, since it directly affects how much useful information the host actually receives.

4. Test SECS/GEM Communication Early

Waiting until final integration to test SECS/GEM communication tends to surface problems at the worst possible time. Testing earlier — through simulation tools, message-level testing, and connection testing — makes it easier to catch issues before they affect equipment deployment schedules.

Useful early testing activities include:

• Simulating host responses to validate equipment-side message handling
• Testing HSMS connection establishment and recovery behavior
• Verifying that messages are formatted and interpreted correctly on both sides
• Validating error handling behavior under abnormal conditions, not just expected ones

Early testing doesn't eliminate the need for full integration testing later, but it does reduce the number of surprises that show up during that phase.

5. Implement Strong Error Handling and Logging

Communication issues are easier to diagnose when the system provides clear, detailed information about what went wrong and when. Strong error handling and logging practices can meaningfully reduce troubleshooting time when problems do occur.

This typically includes logging connection state changes, message send/receive activity, and error conditions with enough detail to reconstruct what happened. It also means handling communication errors gracefully rather than allowing them to cause unpredictable equipment behavior. Teams that invest in this area early often find it easier to diagnose intermittent issues that would otherwise be difficult to reproduce.

6. Optimize Performance and Resource Usage

How an SDK-based implementation handles connections, message processing, and resource usage can affect overall communication stability, particularly on equipment with limited processing resources. Considerations here include:

• Managing HSMS connections efficiently, avoiding unnecessary reconnection cycles
• Structuring message processing so it doesn't introduce unnecessary delays
• Being mindful of memory usage, particularly in long-running equipment processes
• Considering threading models carefully, since concurrent message handling can introduce complexity if not managed properly

These are implementation-dependent considerations — actual performance characteristics will vary based on the specific SDK, equipment hardware, and communication load involved, so it's worth validating behavior under realistic conditions rather than assuming default configurations are optimal.

7. Plan for Scalability and Future GEM300 Requirements

Equipment requirements tend to evolve, and an integration built without room for growth can become difficult to extend later. It's worth considering whether the current architecture can accommodate additional equipment capabilities, new collection events, or expanded host requirements down the line.

For organizations that may eventually need GEM300-related capabilities — such as material handling communication or advanced automation requirements — it's worth confirming early whether the SDK and architecture in use can support those requirements, since GEM300 support depends heavily on the specific implementation rather than being automatically included in a basic SECS/GEM SDK.

8. Keep Documentation and Configuration Organized

Clear documentation becomes increasingly valuable as an integration matures, particularly when multiple engineers or teams are involved over time. Useful documentation typically covers:

• Message definitions and their purposes
• Collection event and alarm configurations
• Status variable and equipment constant definitions
• Configuration settings and their rationale
• Integration procedures and known limitations

Well-organized documentation reduces the time needed for onboarding new team members and makes future troubleshooting or upgrades considerably more manageable.

Common SECS/GEM SDK Implementation Challenges

Even with careful planning, certain challenges tend to recur across SECS/GEM SDK implementations:

• Communication failures caused by network instability or misconfigured connections
• Incorrect message configuration that doesn't match host expectations
• Timeout issues stemming from unclear timing requirements between equipment and host
• Equipment and host compatibility gaps, particularly across different vendor implementations
• Troubleshooting difficulty when logging or diagnostics are insufficient
• Poor documentation that slows down maintenance and future development
• Integration complexity when connecting legacy equipment that wasn't originally designed with SECS/GEM compliance in mind

Recognizing these challenges early makes it easier to plan around them rather than encountering them unexpectedly during deployment.

Benefits of an Optimized SECS/GEM SDK Implementation

A thoughtfully implemented SECS/GEM SDK can support:

• More reliable equipment-host communication
• Faster troubleshooting when issues do occur
• Easier equipment integration across different tool types
• Better equipment data collection for monitoring and analysis
• Improved MES connectivity and factory system integration
• Easier long-term maintenance and future upgrades
• Stronger support for broader smart manufacturing initiatives

These benefits depend on how well the implementation is planned and maintained, rather than being automatic outcomes of using an SDK.

Conclusion

Getting the most out of a SECS/GEM SDK involves more than selecting the right toolkit — it requires careful requirements analysis, thoughtful architecture, disciplined configuration, early testing, and ongoing attention to documentation and error handling. By applying these eight practices, equipment engineers and integration teams can build SECS/GEM implementations that are more reliable, easier to troubleshoot, and better positioned for future equipment automation and smart factory requirements.
